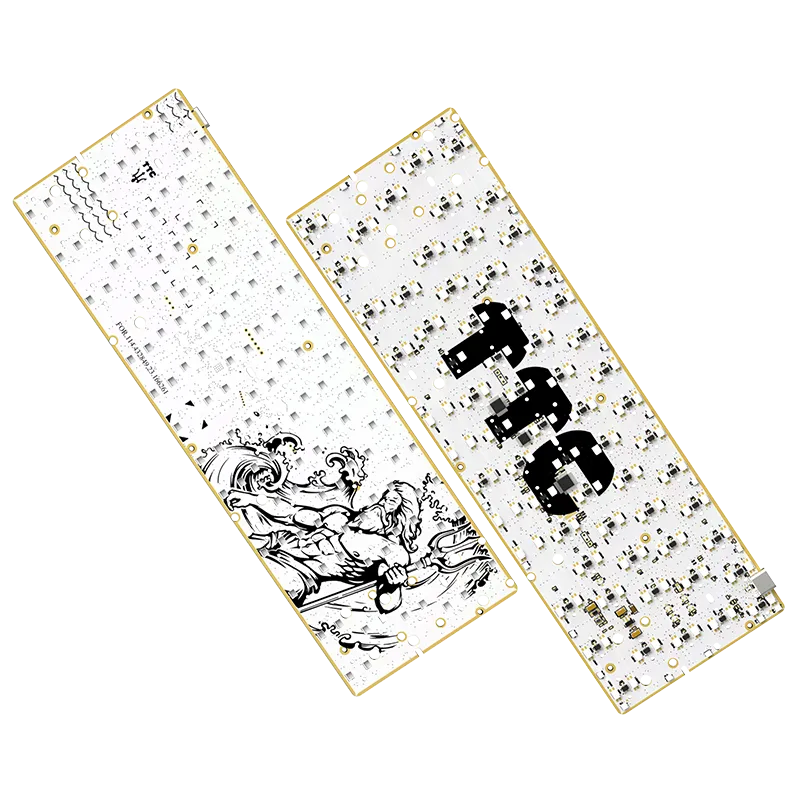

TTC Trident PCB

TTC Hall Effect Magnetic PCB

Specifications

• Type: Magnetic (Hall Effect) PCB
• Dual Layout: 60% & 63%
• Connection: Wired
• Full-range RT Precision: 0.001mm
• RT Step Precision: 0.001mm

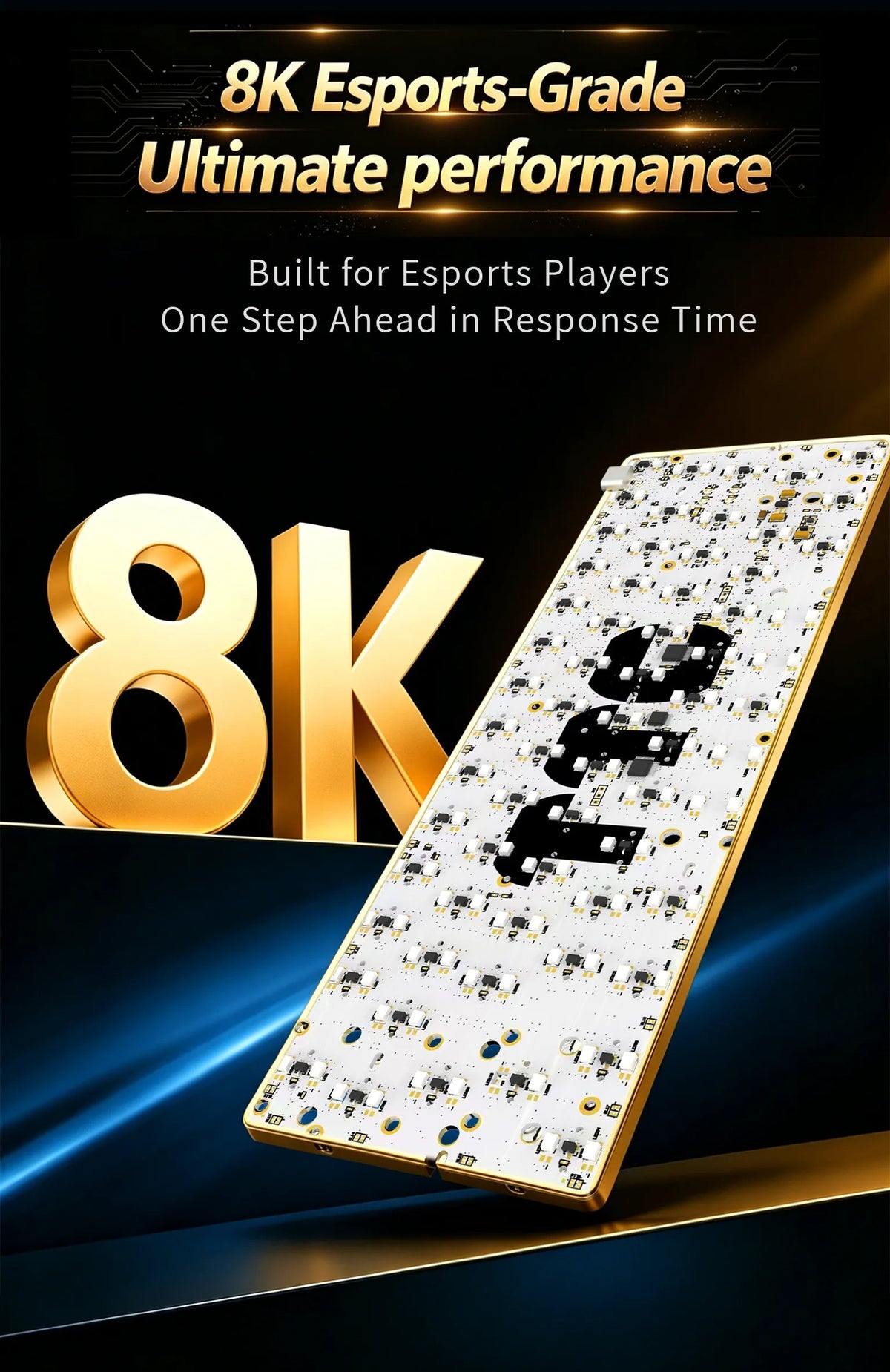

• Polling Rate: 8000Hz

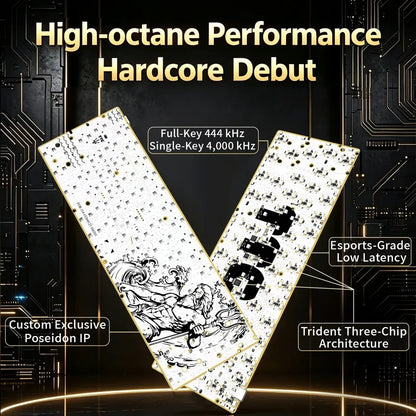

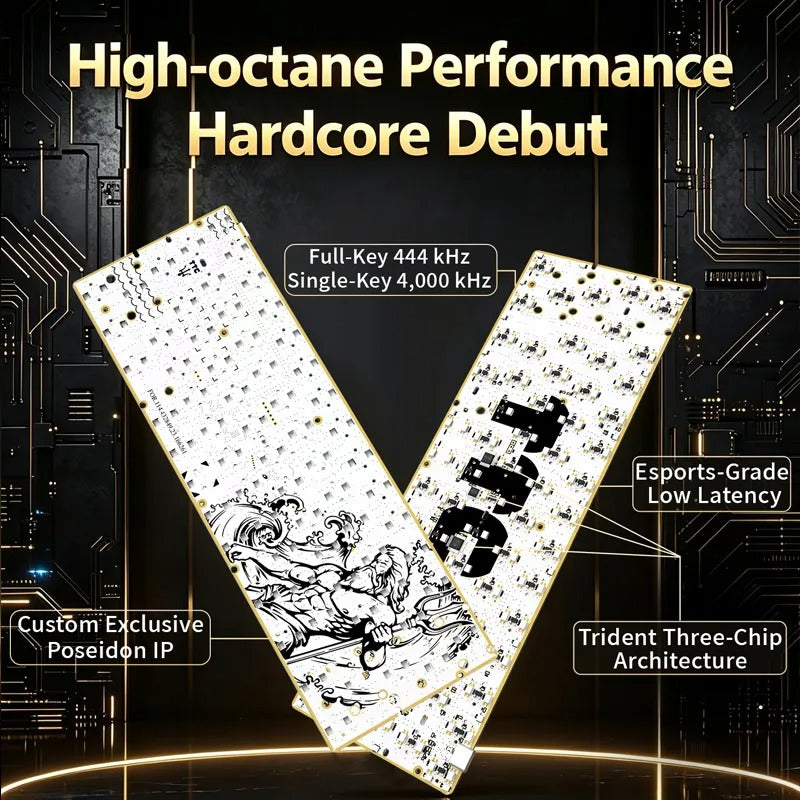

• Scan Rate: Full-Key 444 kHz, Single-Key 4000 kHz
• Solution: TTC Premium self-developed trident architecture
• ADC: Zoned Full-Range Direct-Connect ADC
• Driver: TTC HUB, fully self-developed web-based driver
• Sensor: Custom High-Performance Flagship Hall-Effect Sensor
• Switch Support: Mixed-switch support, compatible with most HE switches on the market

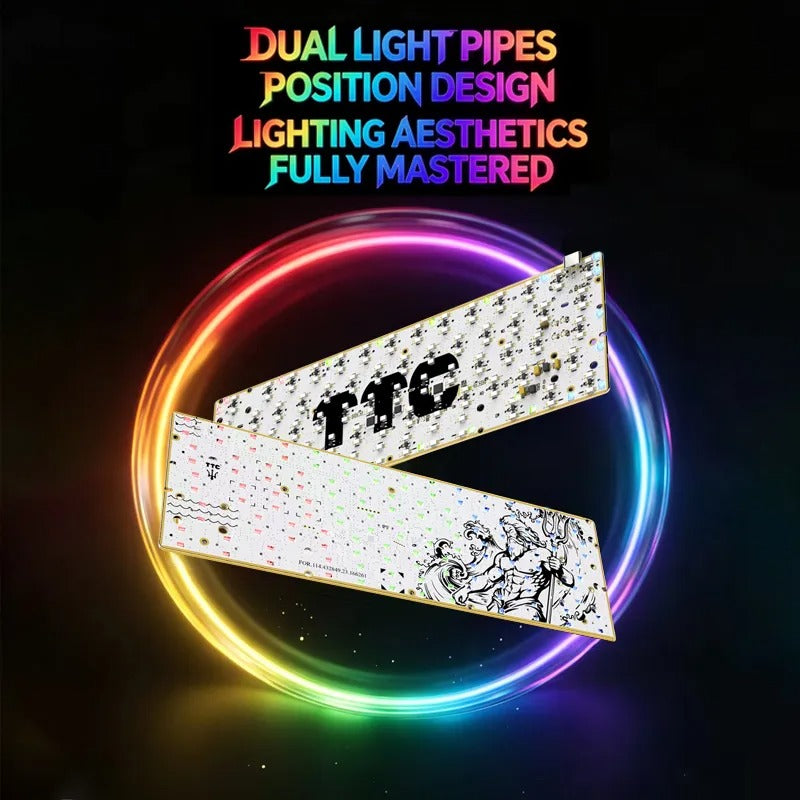

• Switch LED: Dual LED (Top & Bottom)
• Bottom Lighting: 24-Piece ARGB Bottom LED
• Plate: Matte-Black Gold-Plated FR4 Plate
• OS Support: Windows, MacOS

Highlights

• ⚡ Multiple dynamic lighting effects, highly customizable
• ⚡ Supports RT, SOCD, DKS, MPT, MT, TGL, END, RS, Macro and more
• ⚡ Internal Foam Stack: Plate + Plate Foam + Under-Switch Foam + PET Acoustic Foam
