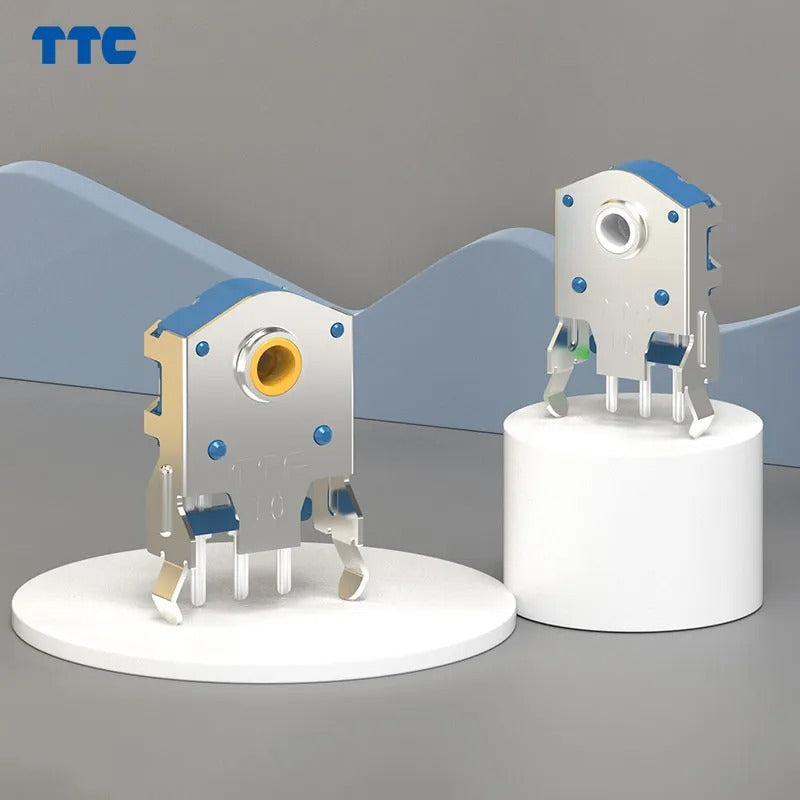

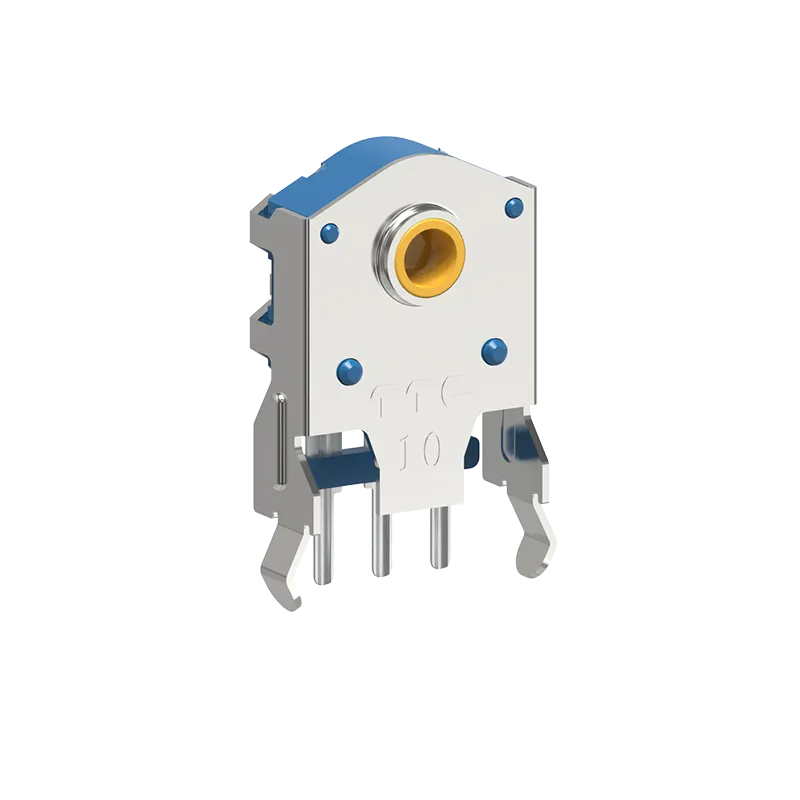

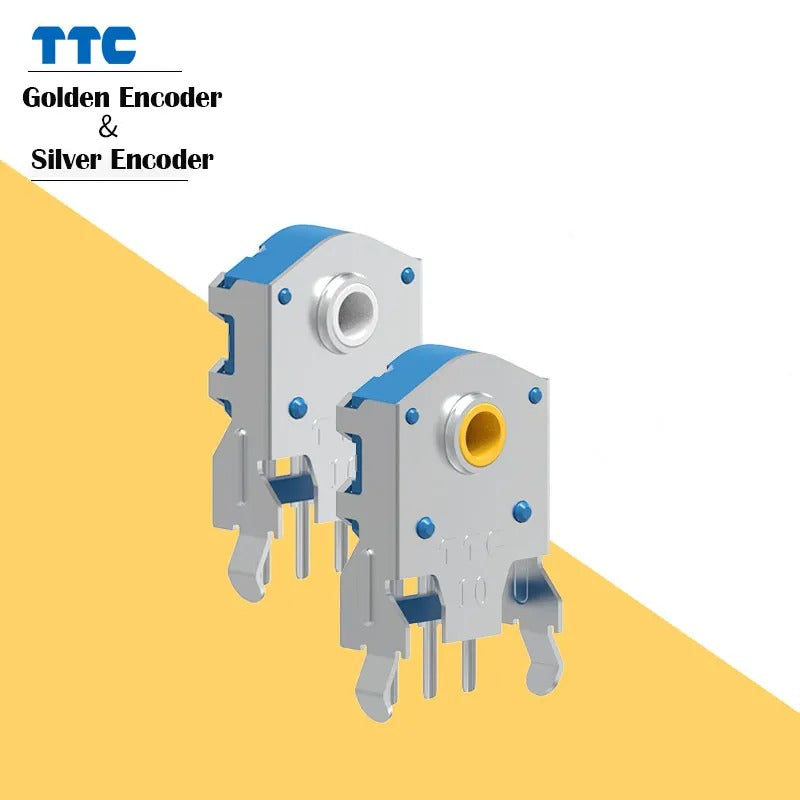

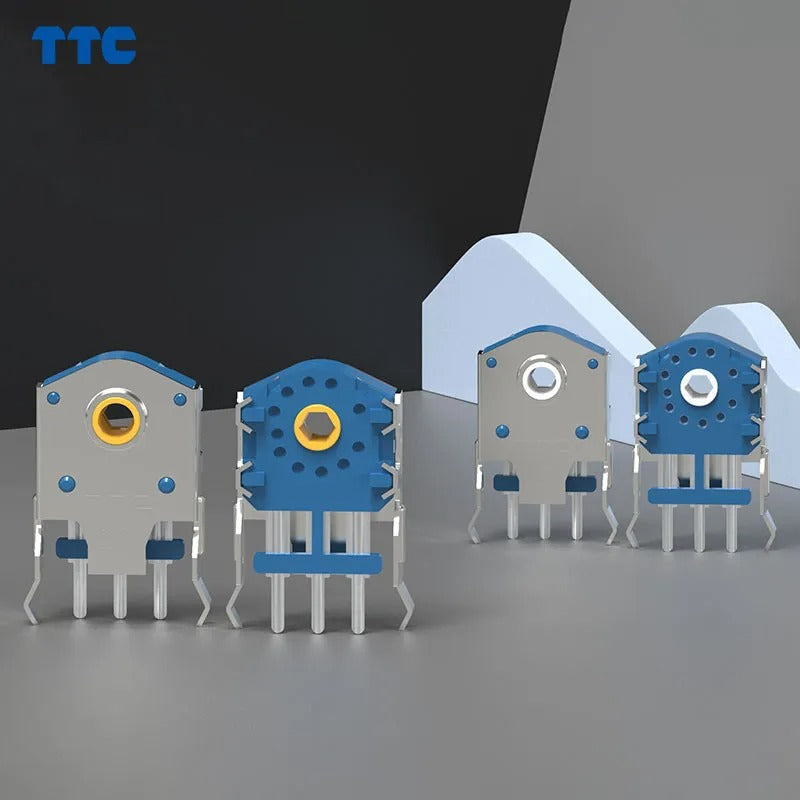

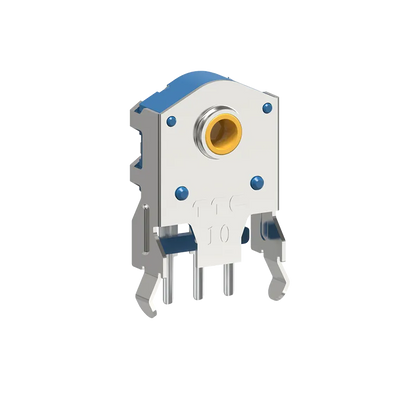

TTC Wheel Mouse Encoder 2M(2P)

Gaming Mouse Encoder

Specifications

• Output Waveform: 24 positioning, 12 pulses

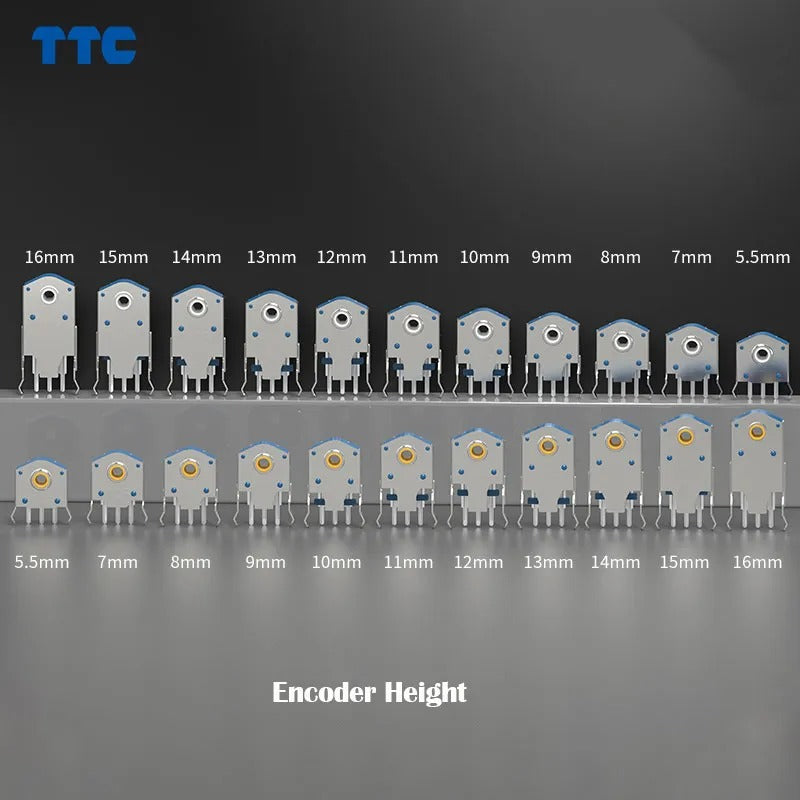

• Product Height: 7mm / 8mm / 9mm / 10mm / 11mm / 12mm / 13mm / 14mm / 15mm / 16mm
• Service Life: 2 million cycles
• Torque Range: 7-20gf.cm / 15-30gf.cm / 20-32gf.cm / 20-40gf.cm, customizable
• Mounting Hole - Direct Axis: 3-1.72±0.02mm / 3-1.74±0.02mm
• Mounting Hole - Half Axis: 3-1.74±0.02mm / 3-1.75±0.02mm / 3-1.76±0.02mm

Highlights

• ⚡ Designed for gaming and competitive mouse
• ⚡ Smooth and delicate rotation feel, efficient & precise, high-speed response
• ⚡ Compact sealed dust-proof structure
• ⚡ Prevent foreign objects from entering internally
• ⚡ Stable and reliable, long lifespan
