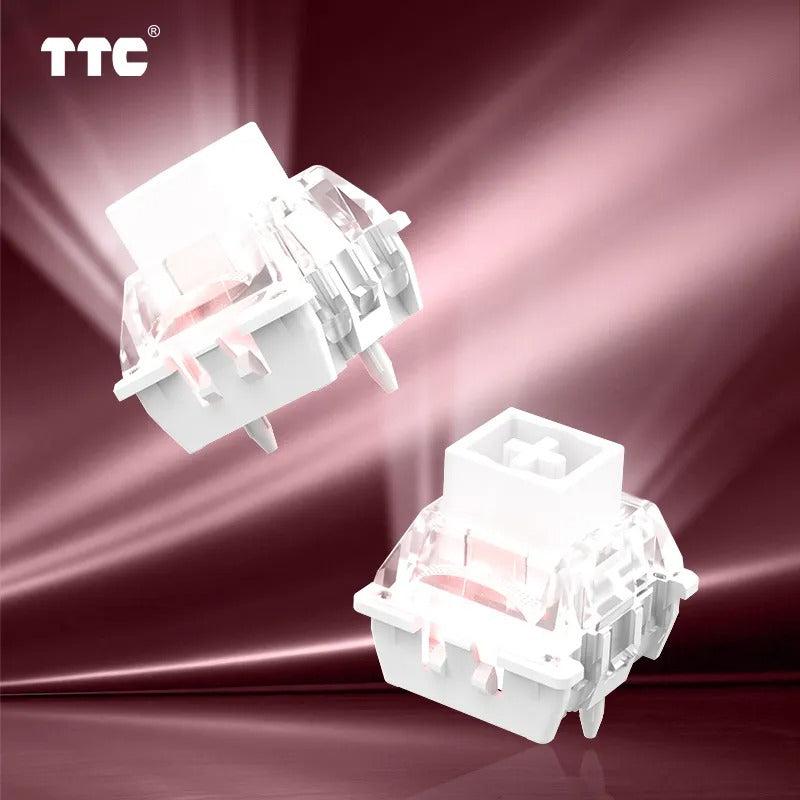

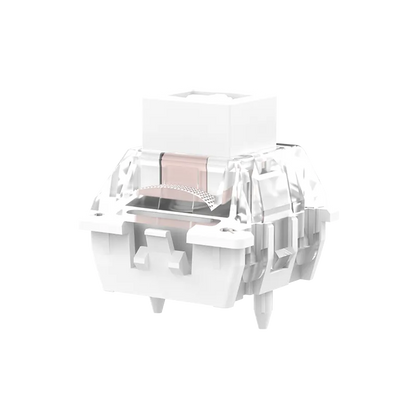

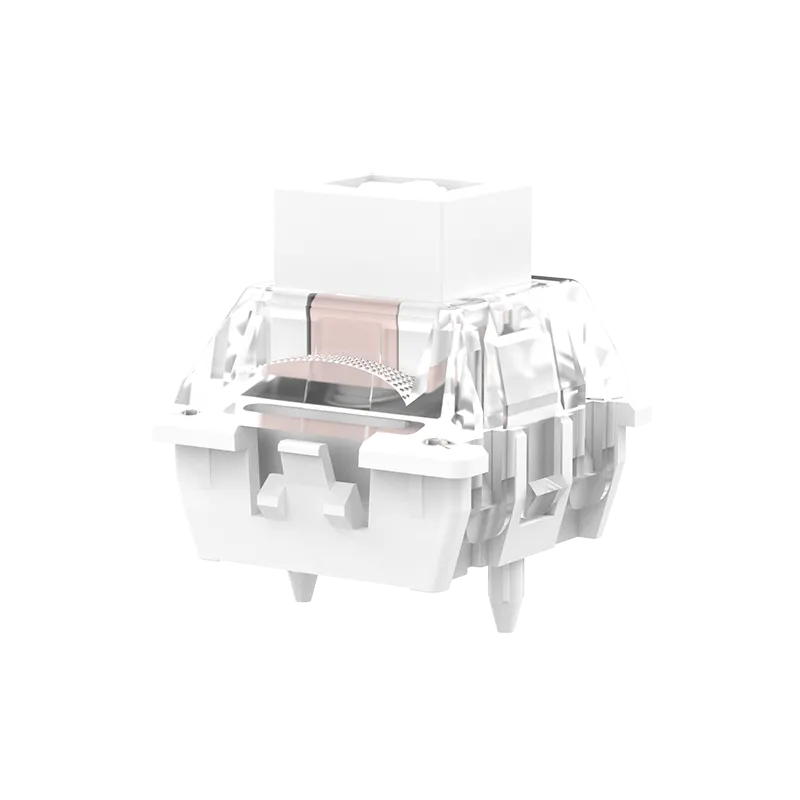

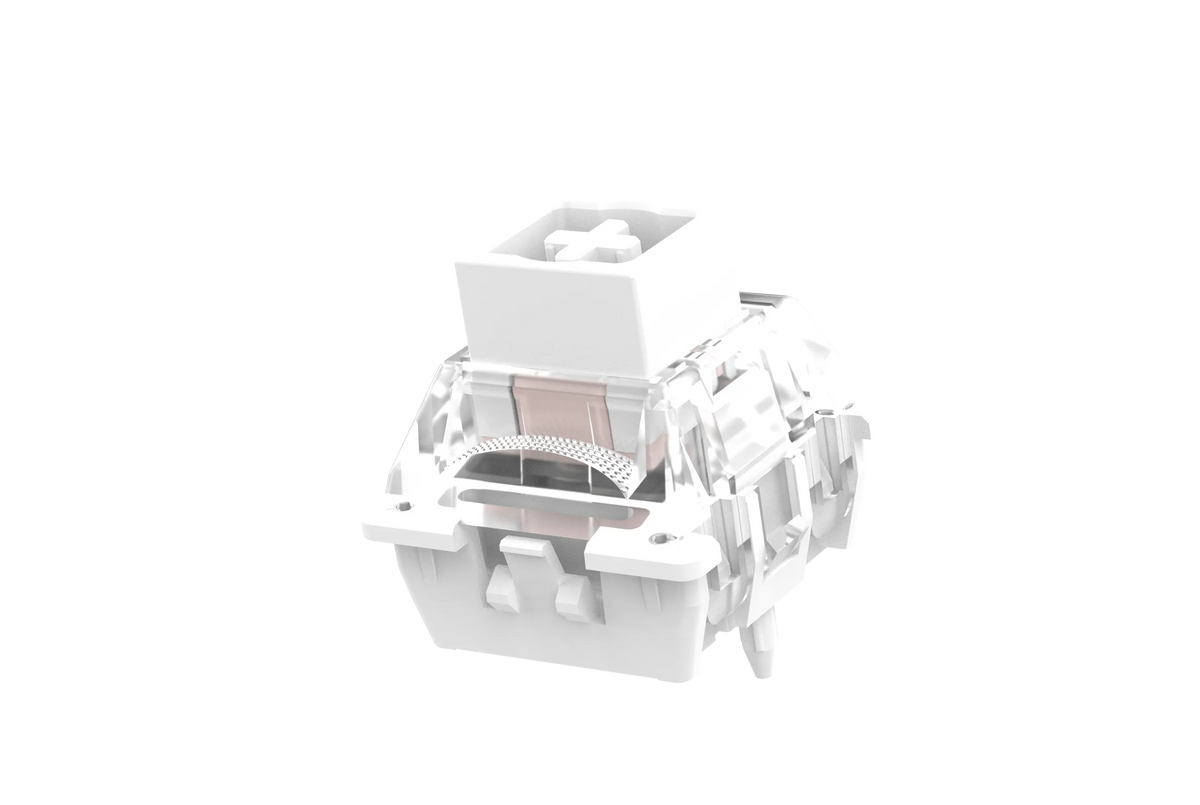

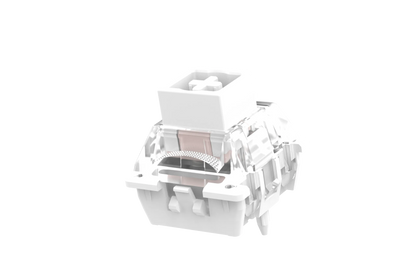

TTC Pro KOM HE Magneto Switch
TTC Pro KOM HE Magneto Switch
Couldn't load pickup availability
Precision Magnetic Technology
Pro KOM HE Magneto Switch
Precision Magnetic Performance. Silky-Smooth Control.
Engineered for smooth linear movement, consistent magnetic sensing, and long-lasting performance.
Key Features
Silky-Smooth Linear Feel
Enjoy smooth, consistent keystrokes with a linear feel and no tactile bump.

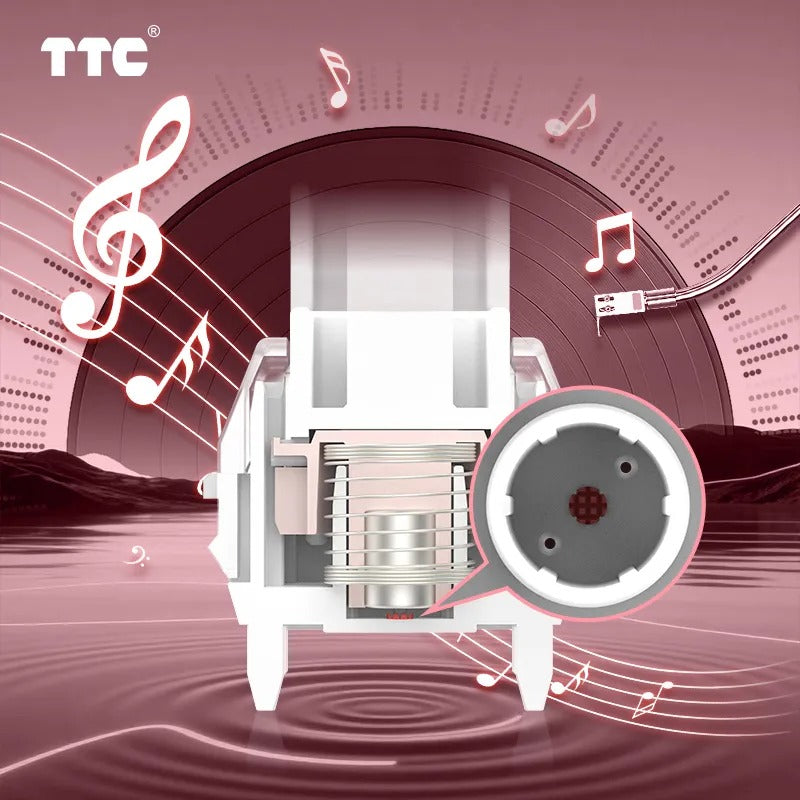

Magnetic Sensing
Designed for magnetic keyboards, with flux specifications for different PCB thicknesses.
Soft Elastic Design
Designed to provide a softer, more controlled, and comfortable typing experience.
Dust-Proof Stem
A dust-proof stem design helps protect the switch mechanism during everyday use.
Technical Specifications
| Specification | Details |
|---|---|
| Switch Type | Magnetic Linear |
| Initial Force | 35 ± 10 gf |
| Total Travel | 3.4 ± 0.2 mm |
| Pre-Travel | Customizable |
| Initial Magnetic Flux (PCB 1.2 mm) | 100 ± 15 Gs |
| Initial Magnetic Flux (PCB 1.6 mm) | 90 ± 15 Gs |
| Final Magnetic Flux (PCB 1.2 mm) | 640 ± 60 Gs |
| Final Magnetic Flux (PCB 1.6 mm) | 480 ± 60 Gs |
| Spring Length | 21 mm |
| Stem Material | POM |
| Top Housing | PC (Polycarbonate) |
| Bottom Housing | Special Material |
| Rated Lifespan | 100 Million Keystrokes |
Built for Long-Lasting Performance
Featuring a POM stem, a PC top housing, a specially formulated bottom housing, and a 21 mm spring, the Pro KOM HE Magneto Switch is designed for smooth linear movement and dependable performance, with a rated lifespan of up to 100 million keystrokes.
Note: Magnetic flux values are specified for the indicated PCB thicknesses. Actual performance may vary depending on keyboard design, PCB configuration, and calibration.
