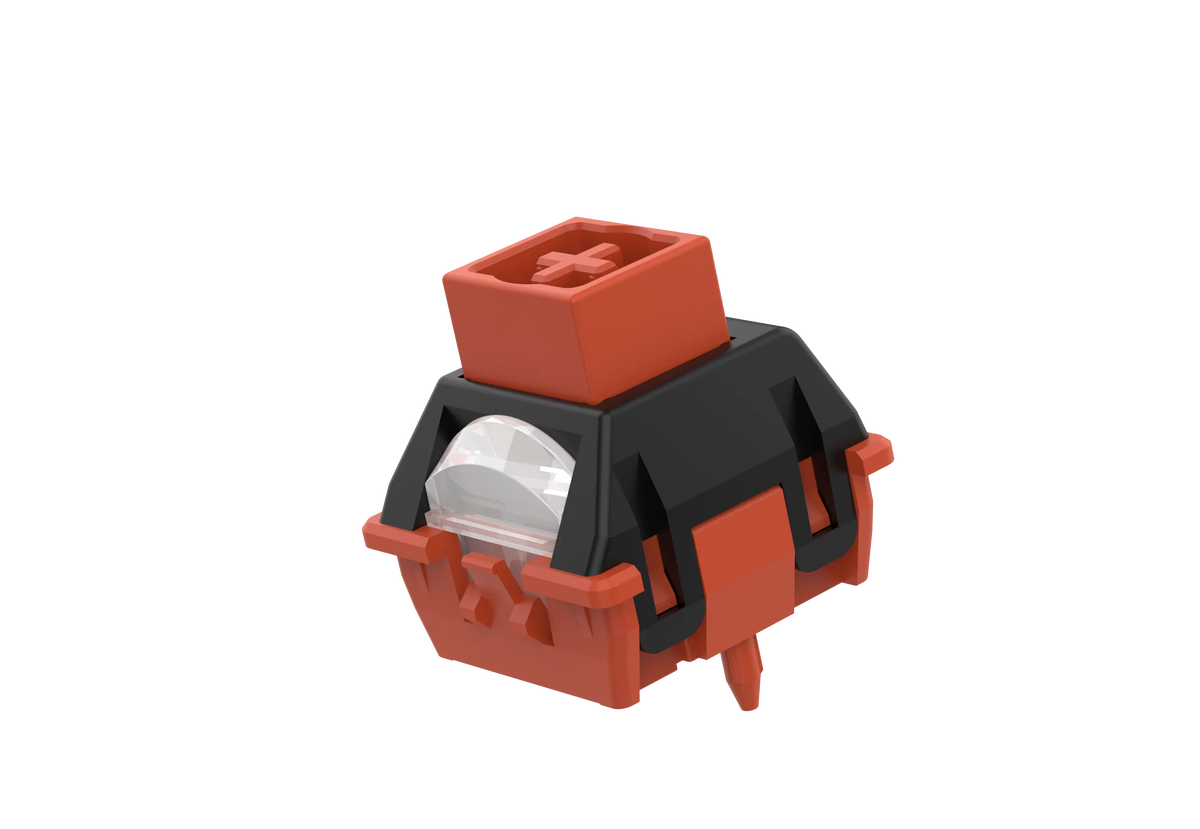

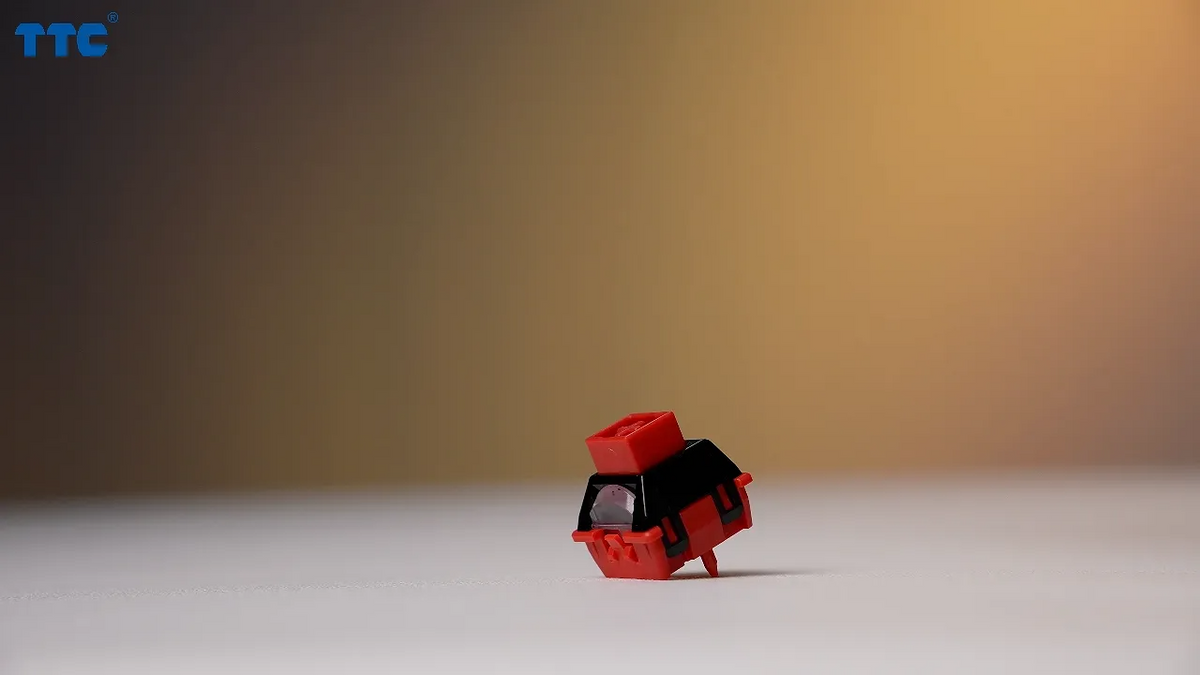

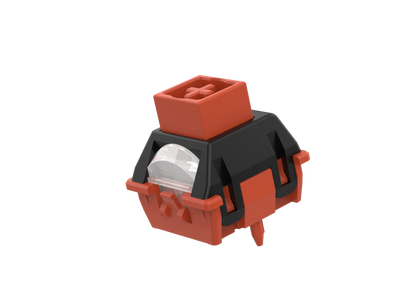

TTC Helios HE Magnetic Switch

TTC Helios HE Magnetic Switch

Switch Features

• Initial Force: 35±5gf
• Initial Magnetic Flux: 90±10Gs (1.6mm PCB)
• Final Magnetic Flux: 480±30Gs (1.6mm PCB)
• Pre Travel: Customized
• Total Travel: 3.4±0.2mm
• Lifetime: 100 Million Keystrokes
• Switch Type: Linear
• Long Spring: 21mm

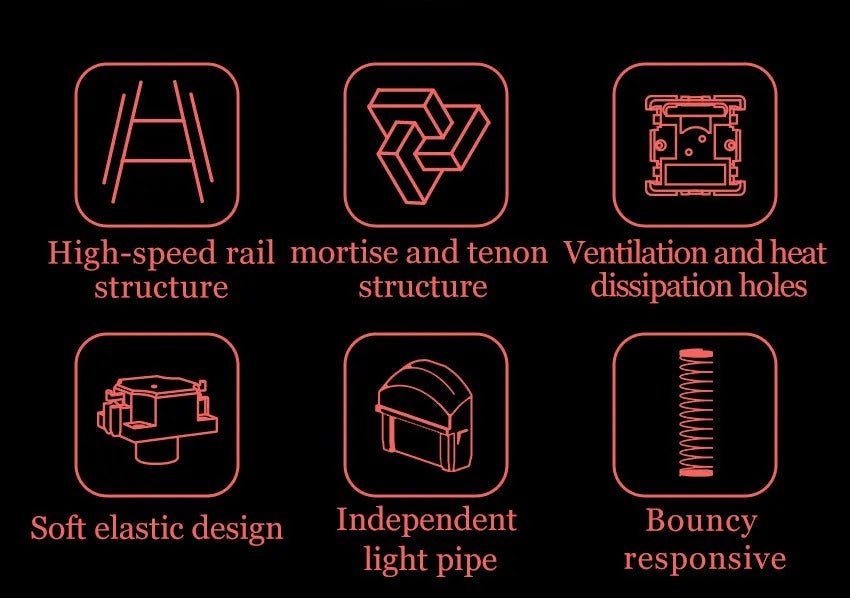

Highlights

• ⚡ High-Speed Rail Structure
• ⚡ Mortise and Tenon Structure
• ⚡ Soft Elastic Design
• ⚡ Dust-Proof Stem
• ⚡ Independent Light Pipe
• ⚡ Ventilation Cooling Design
