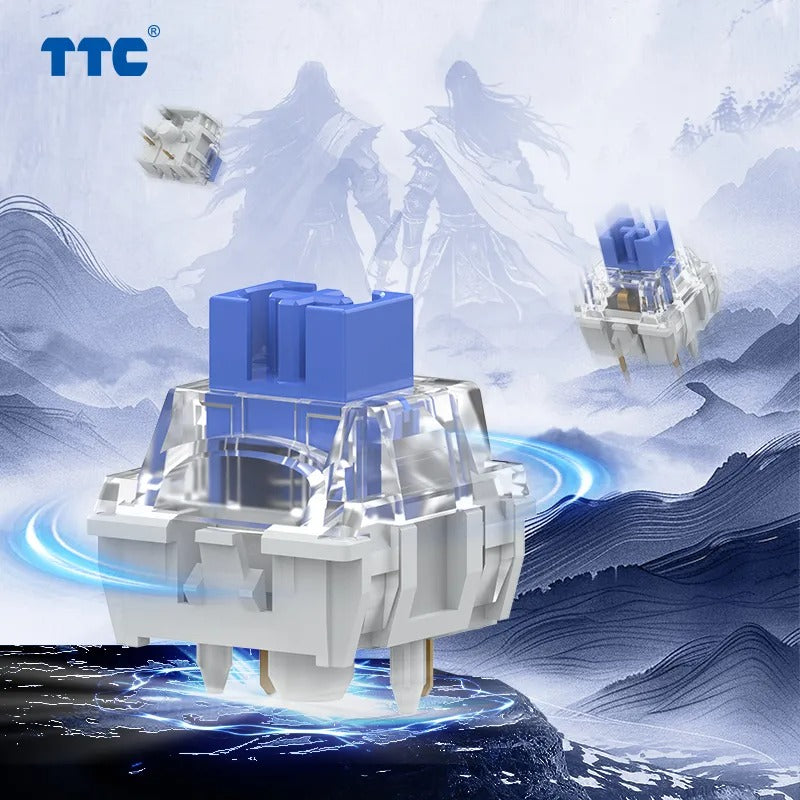

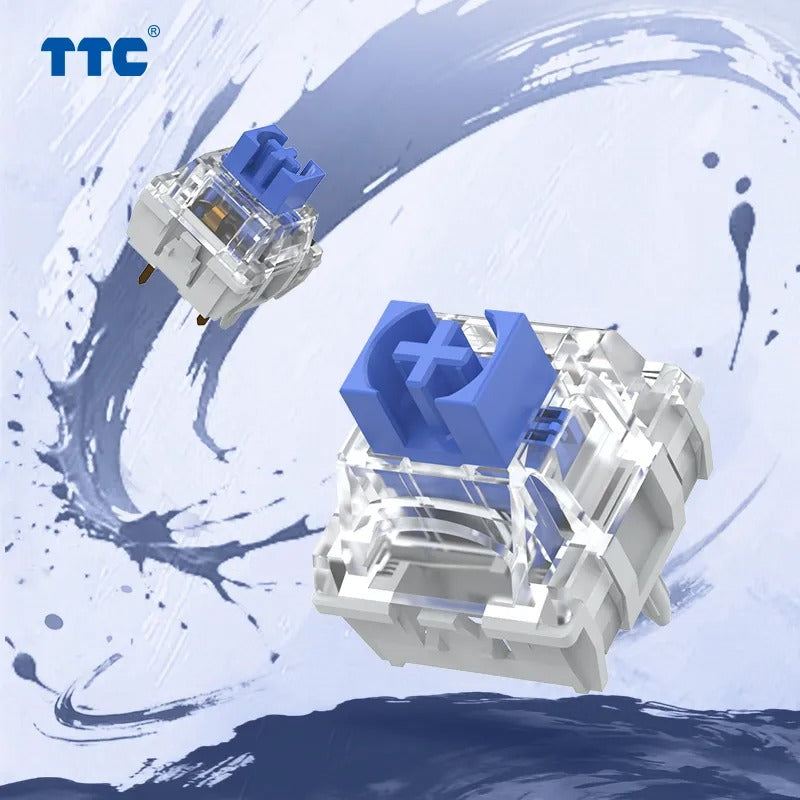

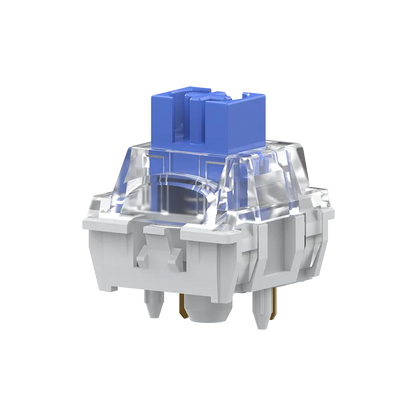

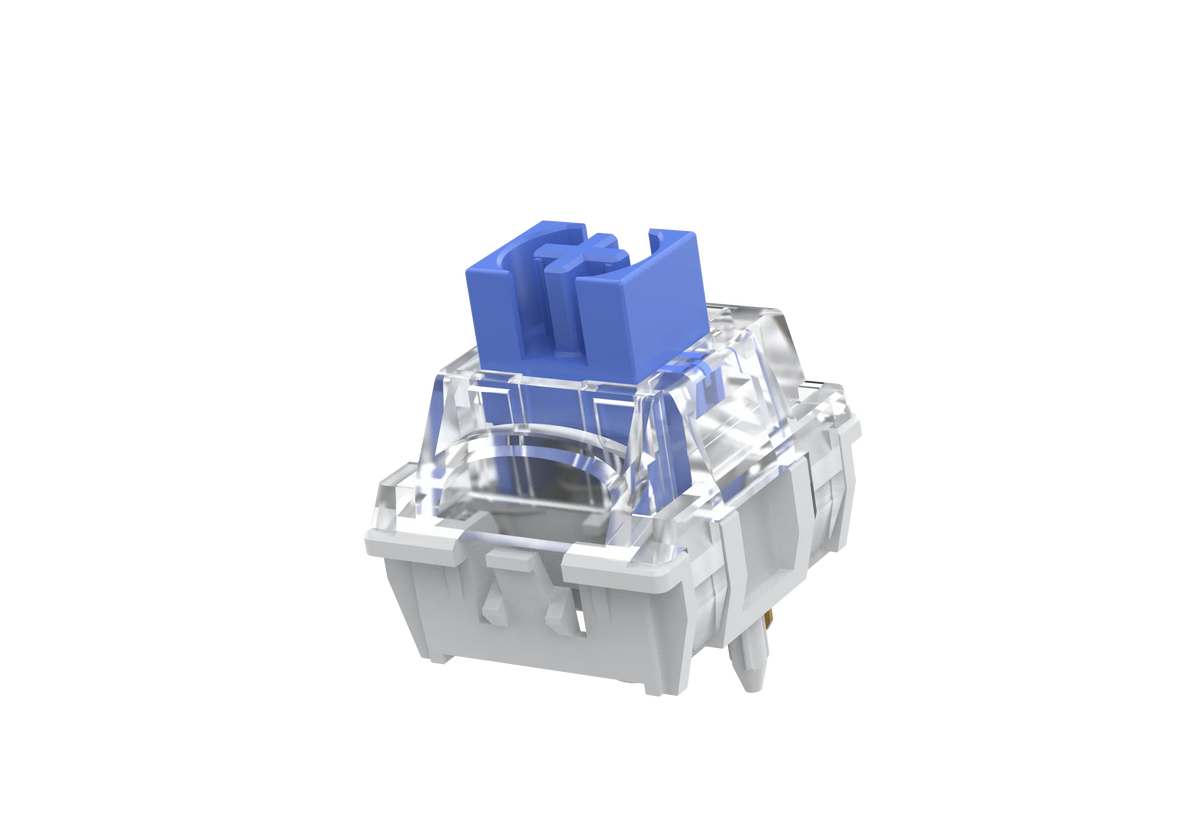

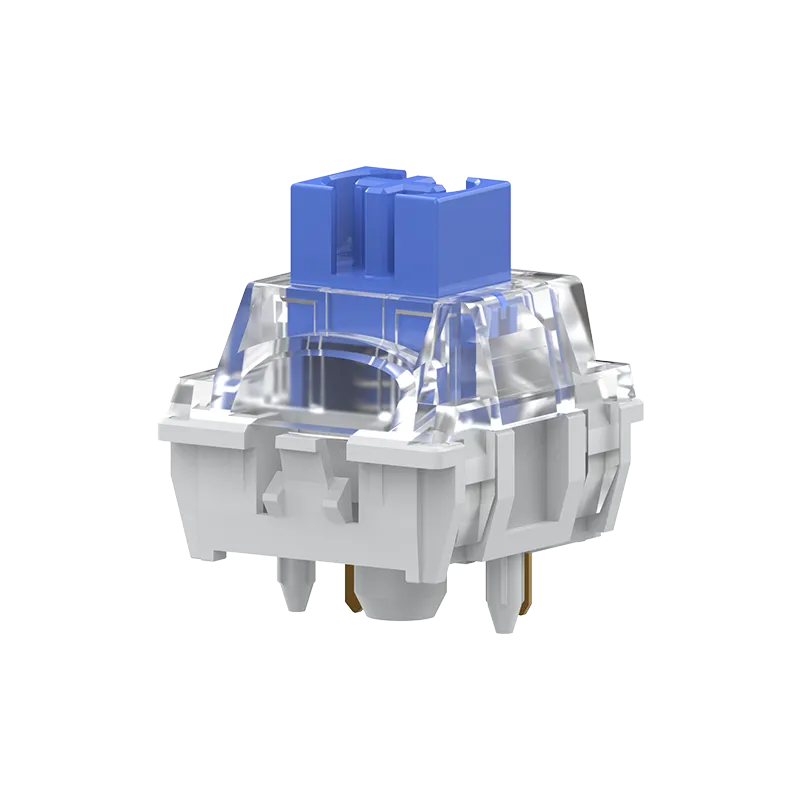

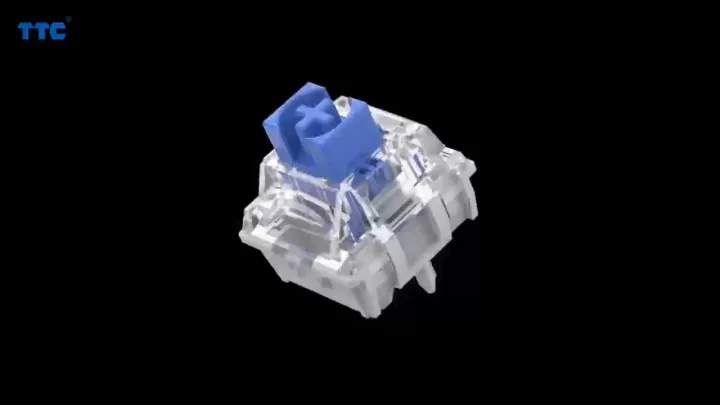

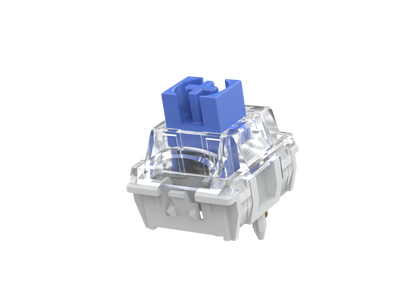

TTC Brother Switch V2—Clicky Tactile

TTC Brother Switch V2

Technical Specifications

• Type: Tactile, 5-pin torsion spring sound
• Operating Force: 42+20/-10gf
• Tactile Force: 58±10gf
• Pre-travel: 1.6±0.4mm
• Total Travel: 3.7±0.4mm
• Lifetime: 80 million keystrokes
• Structure: Damping Leaf Spring
• Stem: POM
• Top Housing: PC
• Bottom Housing: PC
• Contact: Double Gold
• Spring: 22mm

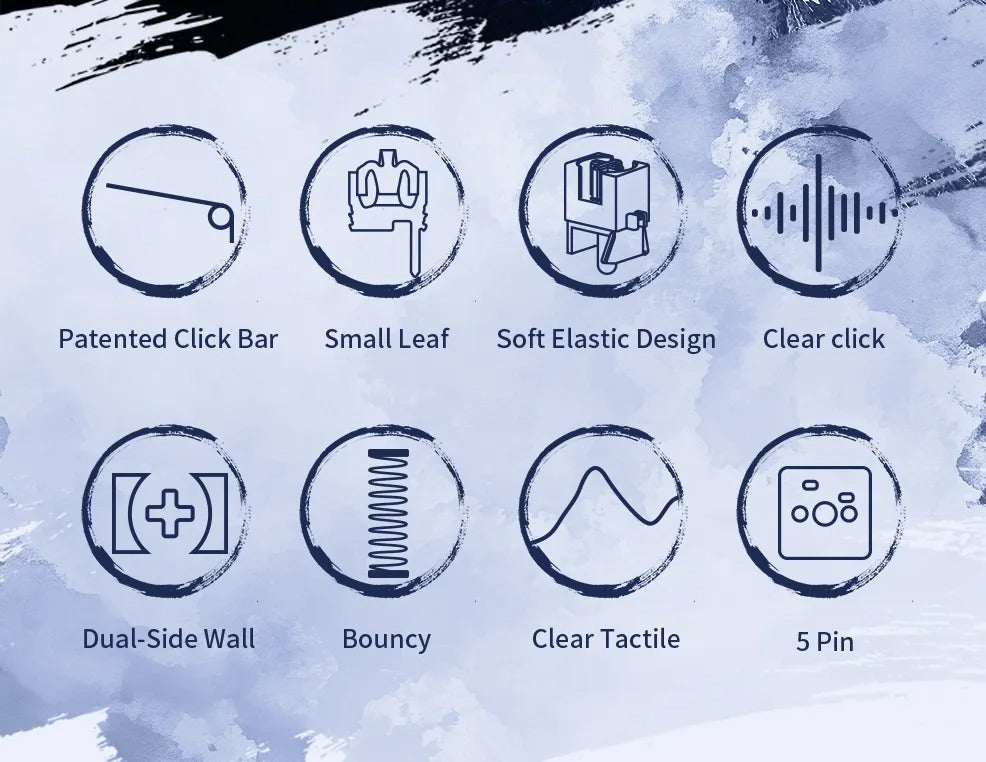

Highlights

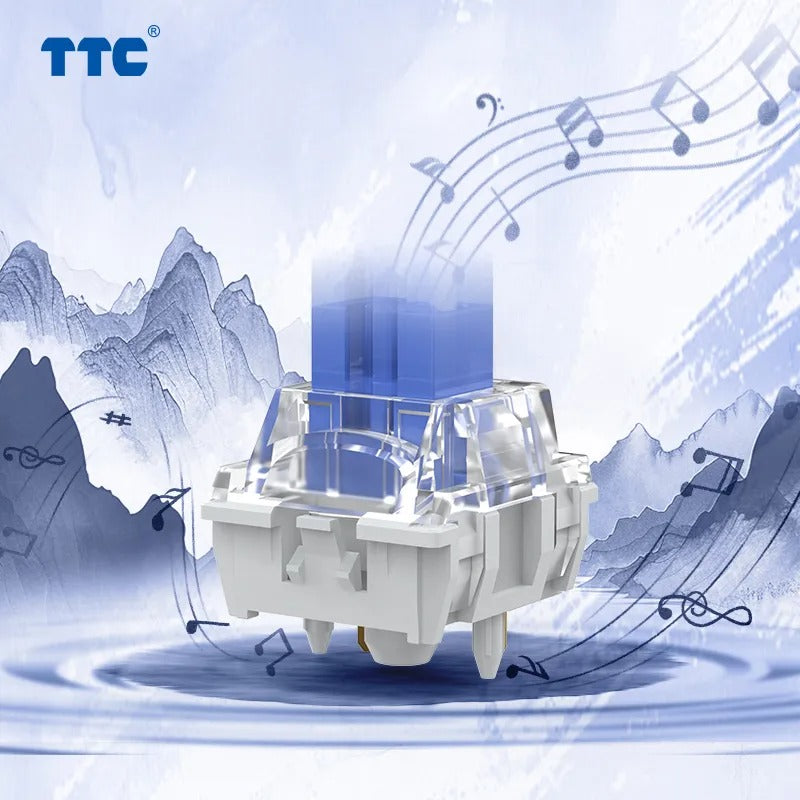

• ⚡ Distinct tactile feedback with unique torsion spring sound
• ⚡ Damping leaf spring design for smooth and consistent feel
• ⚡ Double gold contacts for stable conductivity and long service life
